Algorithm X

There Is No Spoon - Episode 2

Puzzle: There Is No Spoon - Episode 2

Published Difficulty: Hard

Algorithm X Complexity: Strap in and hold on tight!

Reducing the Problem Space

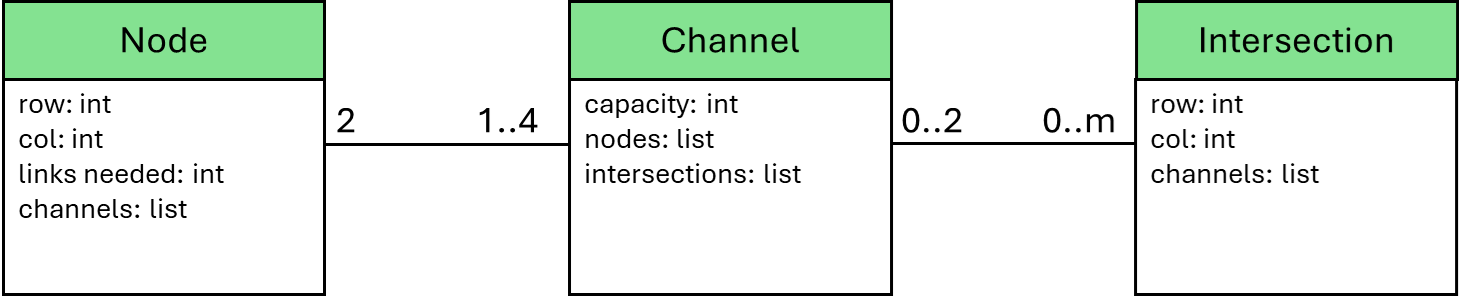

When we last discussed There is No Spoon – Episode 2, I left you with the following class diagram:

To do some problem-space reduction, it seems reasonable we will add a reduce_() method to one or more of the classes, but which ones? Distributing behavior to classes can be difficult and sometimes easy to argue one way or another. Let’s look at each class individually.

Intersection - this seems like the least likely location for a reduce_() method. Intersections have very little intelligence. They must be able to react to a single event sent by a Channel letting the Intersection know that a link has been placed and if there is another Channel in the intersection, it should be disabled.

Channel - this again seems like an unlikely location for a reduce_() method. What would it even mean to reduce a Channel? Sure, the Channel knows about the Nodes on either side, but that is not enough to know whether or not a link must be placed in the Channel. I see a Channel needing to be able to react to two events:

1. A Node might tell a Channel to place 1 or 2 links in its slots.

2. A Node or an Intersection could send an event to disable a Channel. We already saw how this could happen with an Intersection. With a Node, links in other Channels could bring the Node’s needed links down to zero. At that point, all Channels attached to that Node need to be disabled so they cannot accept more links.

Node - this seems like a very appropriate place for a reduce_() method. A Node knows how many links it needs and it can easily calculate the total capacity of its Channels. It seems very reasonable that reducing a Node could result in the Node asking one or more of its Channels to place 1 or 2 links in its slots.

One Potential Sequence of Events

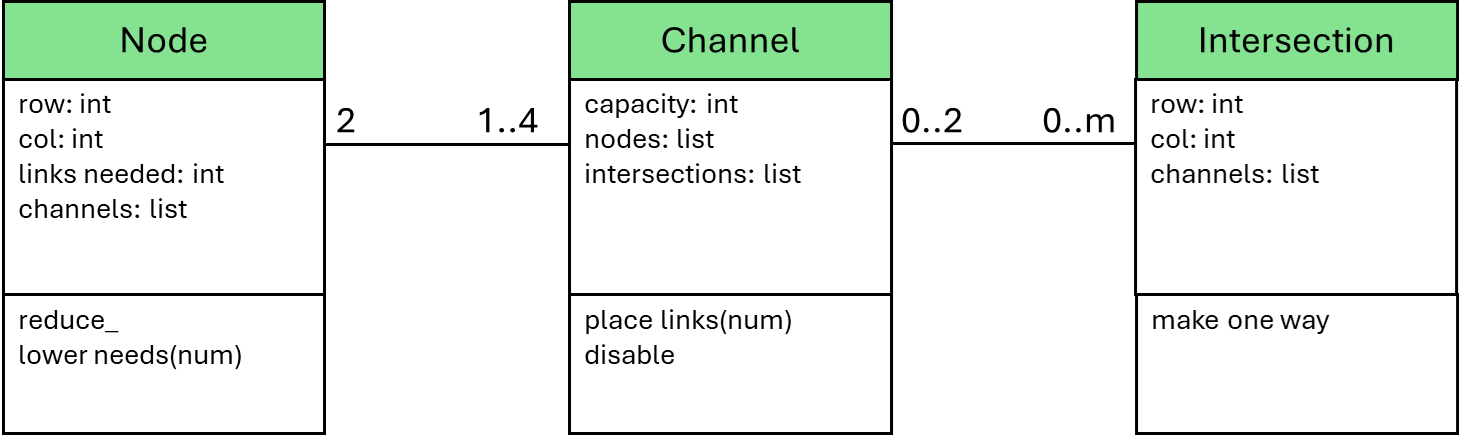

Based on everything said above, the following methods might be useful in each of the classes:

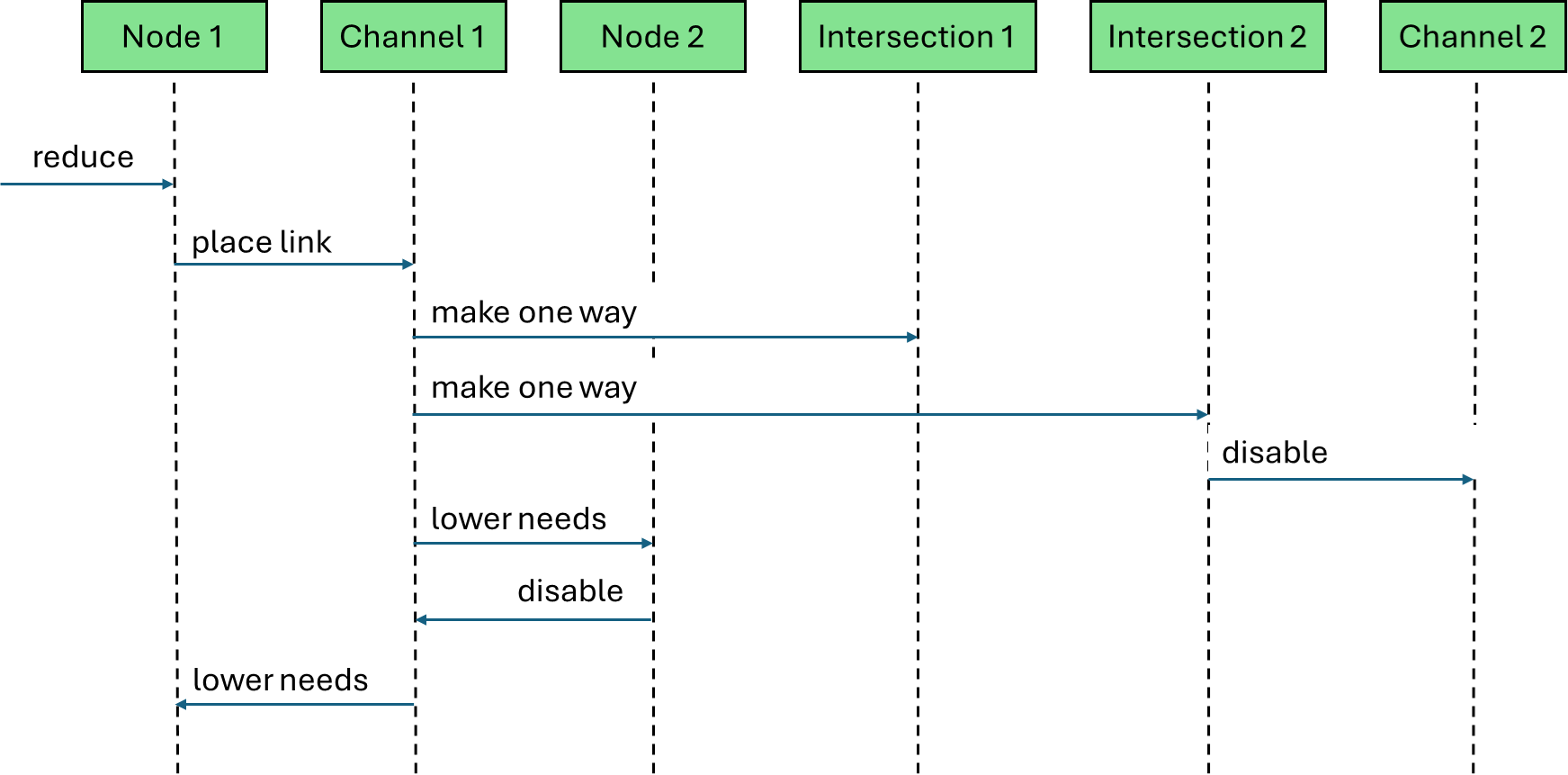

The next diagram captures one sequence of events that could result after a call to reduce_() on a particular Node.

A Node determines that a link can be placed in a Channel. The Node asks the Channel to place a link. The Channel sends an event to every Intersection it passes through telling each Intersection to make the path one-way. Any Intersection that has a second Channel sends a message to the second Channel to have that Channel disabled. Finally, the original Channel needs to tell the Nodes on either end to lower their needed link counts appropriately. Any Node that has all its links fully satisfied makes sure its connected Channels are all disabled.

It might be tempting to think I made this harder than it needs to be. I invite you to play around with it. If you choose to create an object-oriented structure for this puzzle, you can easily run into issues caused by less than optimum allocation of behavior to your classes.

Building a Partial Solution

The same code structure can be used for the reduction loop:

need_to_reduce = True
while need_to_reduce:
    need_to_reduce = False
    for node in self.nodes:
        if node.reduce_():
            need_to_reduce = True

Once this loop finishes, you are left with a partial solution. Some number of links have been placed between Nodes and all those Nodes have lowered their needed link totals. The remaining problem is a smaller, standalone version of the problem that can be solved with no knowledge of what has been accomplished with the logic above. This puzzle is a great candidate for the 3rd option I discussed many pages ago for handling preselected actions. I suggest the following:

1. Build a list of links placed with the logic above.

2. Feed the remaining, smaller problem to Algorithm X with no knowledge of what was accomplished logically.

3. Combine the original list of links with the solution Algorithm X finds to create an overall solution that can be validated to determine if you have a single group of linked Nodes.

Your Goal

Using only problem-space reduction logic, no backtracking at all, you can solve test cases 1 – 8 and 10. To solve all the test cases with Algorithm X, you will need to use some pre-backtracking logic to shrink the size of the problem you give to Algorithm X.

Solving Logic Puzzles Logically

Many Hashiwokakero (There is No Spoon - Episode 2) puzzles can be solved without making any guesses. Click here to see my progress toward solving as many logic puzzles as possible, strictly with logic, no guessing.
