Algorithm X

Haunted Manor

Puzzle: Haunted Manor

Author: @[CG]jupoulton

Published Difficulty: Hard

Algorithm X Complexity: More Confusing than a Svengoolie Movie Marathon

Strategy

Even in a world overrun by the undead, there’s still room for small moments of warmth — quiet laughter over a meager meal, the comforting weight of a weapon held steady, the unspoken promise between survivors. In the midst of chaos, resilience isn’t just about fighting to stay alive, but finding reasons to keep going.

This puzzle will test your resilience! Before hitting the keyboard, I highly recommend playing the online version, Undead from Simon Tatham’s Portable Puzzle Collection.

Object Model

A powerful object model can get you started in a good direction, and I invite you to compare this puzzle’s grid to the grid found in High-Rise Buildings. In the latter, I proposed that each CityView has a relationship with N Buildings and each Building has a relationship with 4 CityViews. More generically, the relationship could have been characterized as a many-to-many relationship. Each CityView groups together many Buildings and each Building is part of many CityViews.

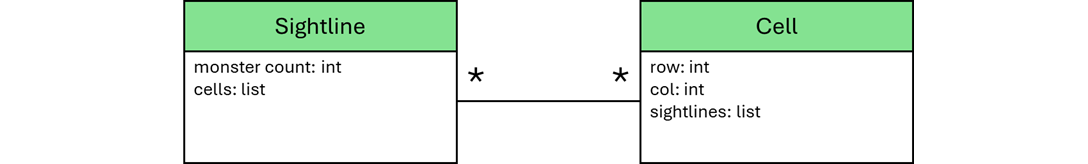

The same model appears to work for Haunted Manor. Let’s call the groups Sightlines and say that each Sightline groups together many Cells, while each Cell can be a member of many Sightlines. Just as was done in High-Rise Buildings, it is tempting to create the following object model.

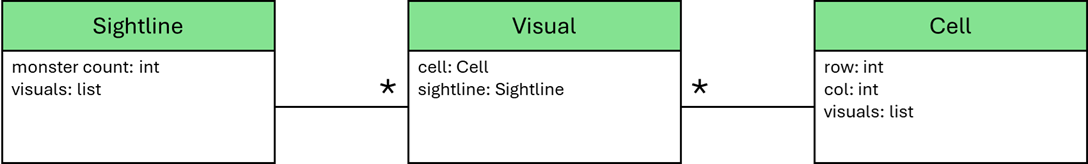

Anytime we encounter a many-to-many relationship, it can be beneficial to step back and consider what the relational database folks might do. Since relational databases don’t directly support many-to-many relationships, they are implemented using a junction table (aka bridge table or associative table). The junction table contains foreign keys referencing both tables, and breaks the many-to-many relationship into two one-to-many relationships. In the next diagram, I have inserted a class called a Visual to act similar to a junction table between the Sightline class and the Cell class.

In coding, we can often move forward without this third class, but not always. Adding this junction class makes sense when each instance has its own interesting attributes. Each Visual represents an instance of one Cell showing up in one Sightline. Are there any important attributes associated with an instance of one Cell in a particularSightline? Yes, there is!

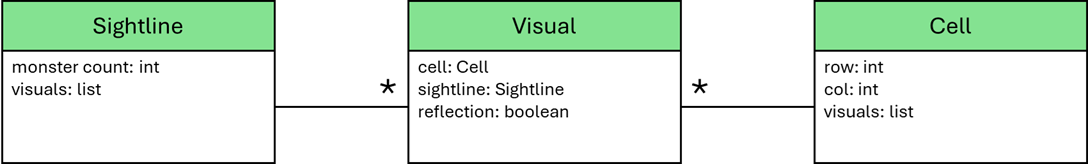

For each Visual, it is important to know if that Visual exists due to normal line of sight or due to reflected line of sight. The concept of a normal, line-of-sight Visual vs. a reflection only exists inside the relationship between one particular Cell and one particular Sightline. In the following diagram, I have added a single Boolean attribute called reflection.

Our class diagram tells a different story now. Each Cell has a relationship with many Visuals, each Sightline has a relationship with many Visuals, and each Visual has a relationship with exactly one Cell and exactly one Sightline. And the best part is that each Visual knows if it exists due to normal line of sight or reflected line of sight.

Consider what is possible with this new model. I can try putting a Vampire in an empty Cell. For each Visual associated with that Cell, I need to know if that Visual exists due to normal line of sight or reflected line of sight. If the reflection attribute is True, the Vampire does not count as being seen in the Sightline because Vampires do not have reflections. However, if the reflection attribute is False, the Vampire does count as being seen in the Sightline.

For this puzzle, having a third class to act as a junction is powerful. The reflection attribute does not belong in the Cell class, nor does it belong in a Sightline class. The reflection attribute only makes sense when it describes a single Cell showing up in a Sightline.

Path to Success

With a strong object model, you are ready to construct your Algorithm X matrix. At this point, Haunted Manor and High-Rise Buildings feel a bit more different than similar. Instead, I suggest you revisit your matrix setup for There is No Spoon – Episode 2 where many of the same concepts can be found.

Getting your matrix set up properly is challenging, but Algorithm X will find solutions to all test cases, except the 7x7 manors, very quickly. To solve the 7x7 manors requires some problem-space reduction and that is a wonderful challenge on its own. I needed to really think through sequences of events similar to what I discussed for There is No Spoon – Episode 2.

I Ain’t Afraid of No Ghosts

I love everything about this puzzle. Creating an abstract object model is challenging. The problem-space reduction is challenging. Creating a solid Algorithm X setup is challenging. If you enjoy a challenge, this puzzle is for you!

I’m no fan of scary movies, but some of us grew up with various television shows about ghosts and goblins and hopefully this puzzle brings back fond memories. If you get stuck solving this puzzle, take a break and look for inspiration in this classic 1984 subject-matter video:
