Algorithm X

Eight Queens Problem

Wikipedia concisely states:

The eight queens puzzle is the problem of placing eight chess queens on an 8×8 chessboard so that no two queens threaten each other; thus, a solution requires that no two queens share the same row, column, or diagonal.

Requirements

Obviously, the first requirement is that 8 queens be placed somewhere on the chessboard. Since there are only 8 rows and 8 columns and no two queens are allowed to be in the same row or column, we can say that a queen must be placed in each row and a queen must be placed in each column. To fully specify these requirements, we will need 16 distinct requirements:

('queen in row', 1)
('queen in col', 1)
('queen in row', 2)
('queen in col', 2)

[…]

('queen in row', 8)
('queen in col', 8)

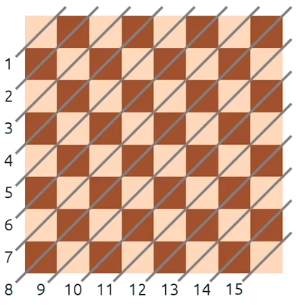

But, what about the diagonals? Take a look at the following image I found on math.stackexchange.com

There are 15 diagonals in the image and those are just the up-and-to-the-right diagonals. That doesn’t include another 15 down-and-to-the-right diagonals. We only have 8 queens, making it impossible to fully cover either set of 15 diagonals. However, if a diagonal is occupied by a queen, it is critical that no other queen be in that same diagonal.

These diagonals perfectly fit the definition of an optional requirement. While rows and columns on the board must have exactly one queen, the diagonals may or may not have a queen, but if a diagonal is covered by a queen, it must not be covered by more than one queen.

The picture above assigns a unique integer to each of the up-and-to-the-right diagonals. For completeness, let’s assign the numbers 16 to 30 to the down-and-to-the-right diagonals, starting in the bottom-left corner. This results in the following 30 distinct optional requirements:

('queen in diagonal', 1)
('queen in diagonal', 2)
('queen in diagonal', 3)

[…]

('queen in diagonal', 28)
('queen in diagonal', 29)
('queen in diagonal', 30)

Our complete set of requirements looks like this:

requirements = 8 rows + 8 columns

optional_requirements = 30 diagonals

Actions

Hopefully, you already see there are 64 actions that can be taken. You can place a queen on any one of the 64 squares. The hardest part about the 8 Queens puzzle is building the list of requirements satisfied by each action. Assuming rows are numbered from top to bottom and columns are numbered from left to right, let's look at placing a queen in the top left corner.

action = ('place queen', 1, 1)

covered requirements = ('queen in row', 1)
                       ('queen in col', 1)
                       ('queen in diagonal', 1)
                       ('queen in diagonal', 23)

Remember, I previously suggested numbering the down-and-to-the-right diagonals from 16 to 30, starting in the bottom-left corner. When solving the 8 Queens puzzle with Algorithm X, you might find determining the unique identifiers of the diagonals to be challenging. You won't want to hard-code all of your actions and requirements, so you will need to develop a formula that takes a (row, col) combination and gives you two diagonal identifiers.

Moving On...

That is all there is to it! Looking at the 8 Queens puzzle as a generalized exact cover makes the entire problem easier to digest. Before we apply these new concepts to a few puzzles, we need to take a look at one of the most common places optional requirements show up in models...mutual exclusivity.
