Algorithm X

Important Details

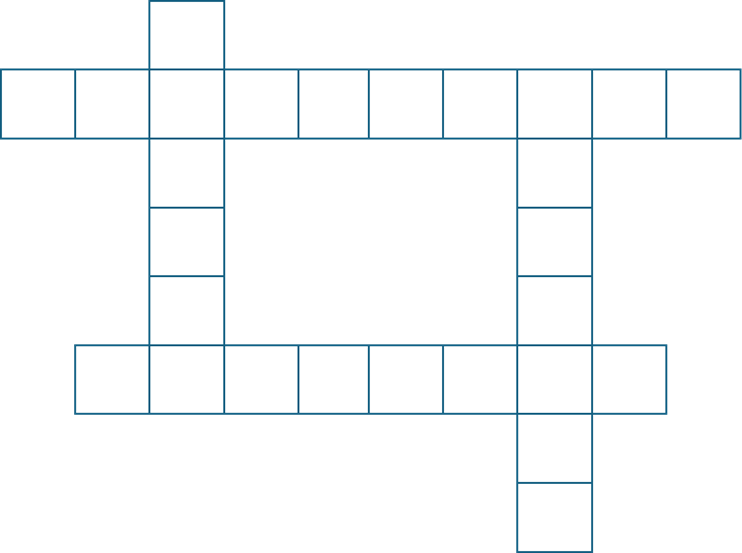

The first thing to notice about this puzzle is that all valid solutions form a "box", as illustrated in the diagram below. Each box can be as small as 3×3, or as large as min(h1 length, h2 length) × min(v1 length, v2 length). Regardless of its size, the box always plays a central role.

From the perspective of tiles on a gameboard, each solution consists of just four actions: placing one word across the top, a second across the bottom, a third down the left side, and a fourth down the right. Simple, right? But is it enough to just match four words to four sides? No, it is not.

Although the exact size of the box is not known upfront, placing a word on the gameboard must also specify which letters of the word go on the corners of the box. The box is part of the gameboard, but its size is determined by how words are placed—specifically, which letters are used at the corners.

In every exact cover problem we have seen so far, a solution was built from a list of actions. To build a solution for this puzzle, each action must now include four key pieces of information: the word being placed, the side it is being placed on, and the indexes of the two letters that land on the box’s corners. An action might look like this:

('place word', word, side, i, j)

With this richer action format, valid solutions can be built from just 4 actions. Care must be taken to ensure:

• The same letter appears at each corner where sides intersect.
• Because the box is always a rectangle, the words on opposite sides must have the same distance between their respective corner letters (i.e., the same difference between i and j).

Hopefully, you see the sameness that must be enforced. Let’s explore how that plays out — using coloring versus mutual exclusivity.

Enforcing Sameness with Coloring

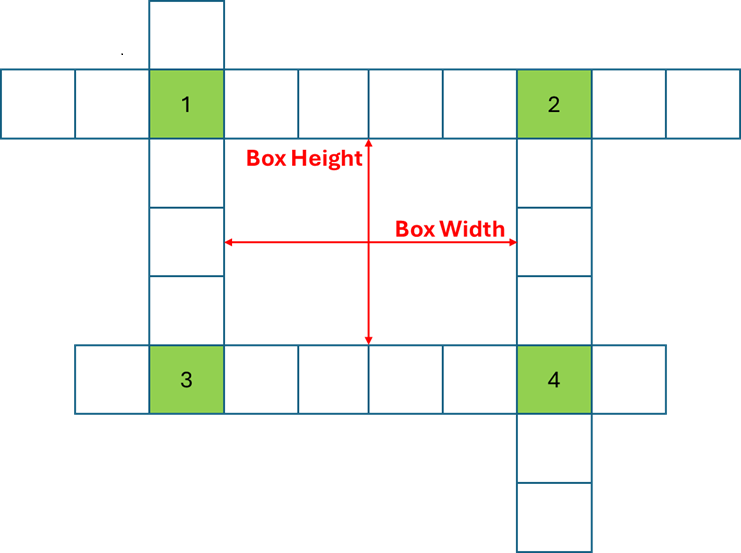

In the diagram below, each corner is labeled with a unique integer ID, and two key dimensions are highlighted: the box width and box height. Each action specifies letters that occupy two corners, and those corners, in turn, define either the width or the height of the box.

Although only six requirements need to be colored, maintaining consistency across those colors is what guarantees valid solutions.

Each of these six requirements is colored exactly twice, creating a structure that is highly conducive to using mutual exclusivity.

Enforcing Sameness with Mutual Exclusivity

Whenever possible, I prefer mutual exclusivity over coloring. Mutual exclusivity is a natural fit within Algorithm X, while my coloring approach is a custom adaptation that adds useful power — but at a cost.

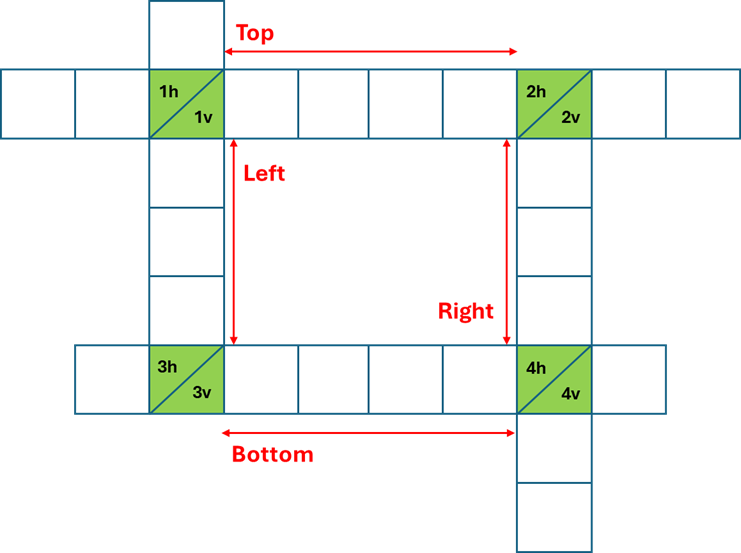

In the next diagram, I’ve split each corner into two types of coverage: vertical and horizontal. I’ve also labeled the lengths of all four sides of the box. Because each corner must be covered consistently, a set of me_requirements can be created to enforce that consistency. For example, corner 1 being covered horizontally with an s is mutually exclusive with the same corner being covered vertically with a g.

This technique also applies to the box sides. For instance, the Top having a length of 3 is mutually exclusive with the Bottom having a length of 4.

There is a fair amount of optimization that can be done when identifying requirements for mutual exclusivity. Only certain letters are valid for each corner in each direction, and only certain lengths are legitimate for each side. Keeping your list of me_requirements as small and focused as possible is crucial if you want to maximize speed and efficiency.
